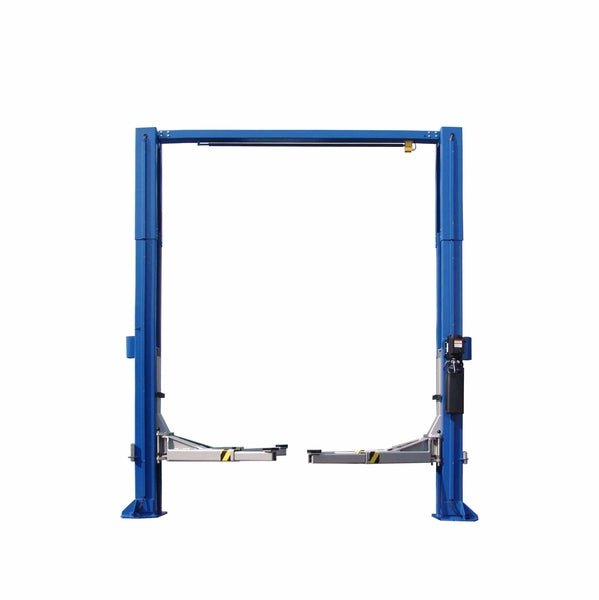

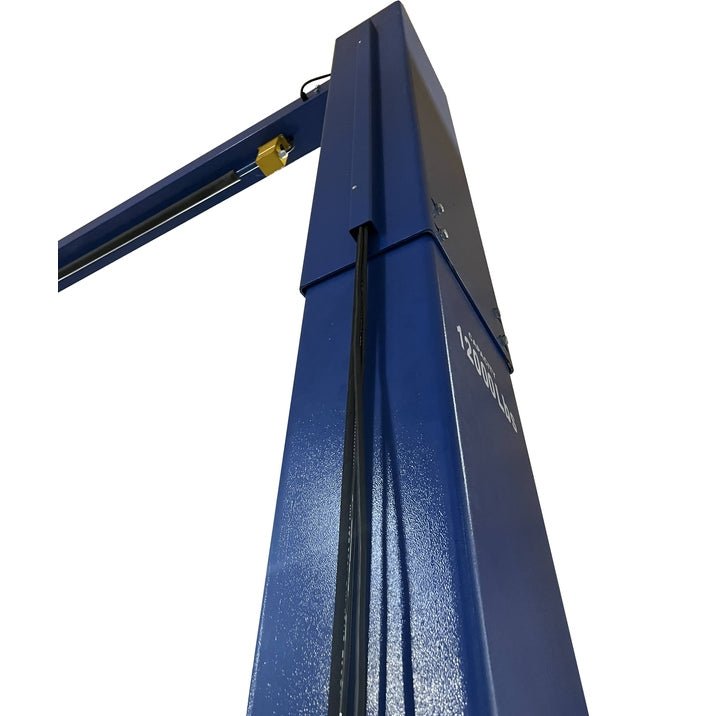

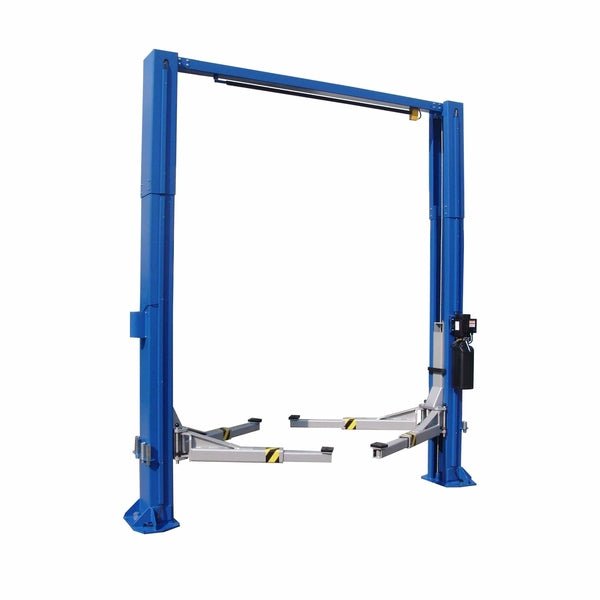

Tuxedo TP12KC-D 12,000 lb Two Post Lift — Direct Drive
Original price was: £5,943.62.£3,268.99Current price is: £3,268.99.
Tuxedo Heavy-Duty 12,000 lb 2 Post Lift
Big. Strong. Dependable. The fully gusseted oversized base plateson the TP12KC-D and the big lifting arms with reinforcedswivel pin holes, promise years of reliable service.
Features
- 12,000 lbs Capacity
- Symmetric Arms
- Rubber Door Guards
- Direct Drive push Cylinders
- Single Point pneumatic Lock Release
- Heavy Duty Arm Restraint System
- Drop-in Lift Pads
- Stackable Adapters Included
- External hose guards
Specifications
| Lift Model | TP12KC-D |
| Capacity | 12,000 lbs. |
| Height Overall | 165″ |
| Width Overall w/ Power Unit | 151″ |
| Max Lift Height | 72″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 5.5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach min/max | 37-5/8″ 56-3/4″ |
| Long Arm Reach min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs. |
| Ship Weight | 2,295 lbs |
| Power | 220V 20 AMP 1 PH |
