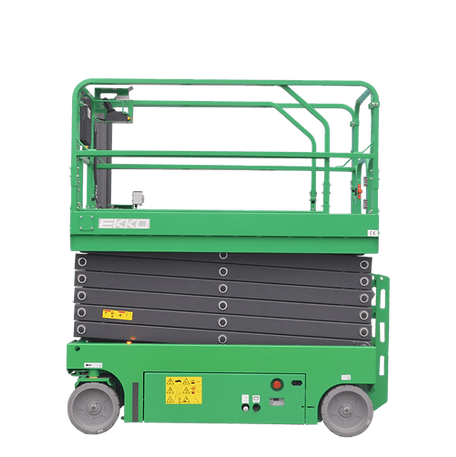

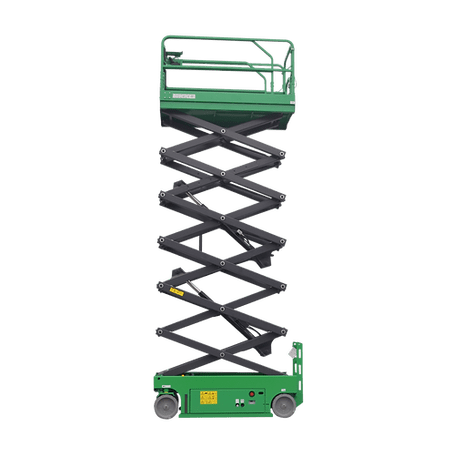

EKKO ES80E-LI Aerial Work Platform Lift Height 26.2′ (315”)
Original price was: £33,081.48.£18,194.81Current price is: £18,194.81.
The EKKO ES80E-LI Scissor Aerial Work Platform is a 990-lb compact platform with four wheels and a Curtis controller, allowing you to lift, transport loads, and move products easily and safely. This product also complies with GB25849 and EN280 standards.
-Load Capacity 990 lb
-Raised Height 26.2′ (315″)
-Lowered Height 90.6”
-Size: Length 89″ x Width 45″
-Steel construction
-3 Years Limited Warranty
Specifications
| ? | ES80E-LI | |

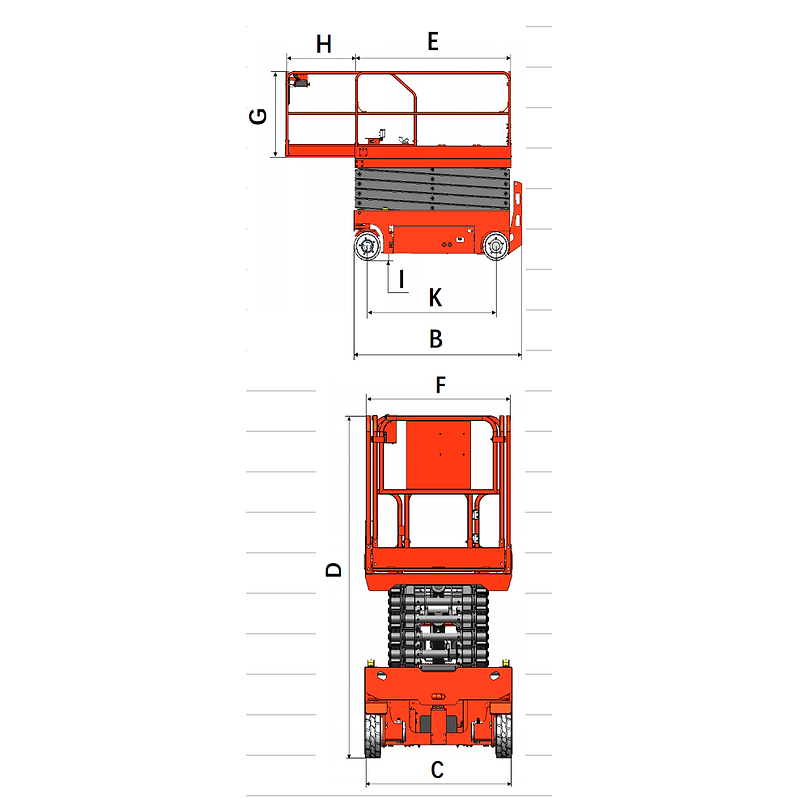

| product dimensions | ? | ? |

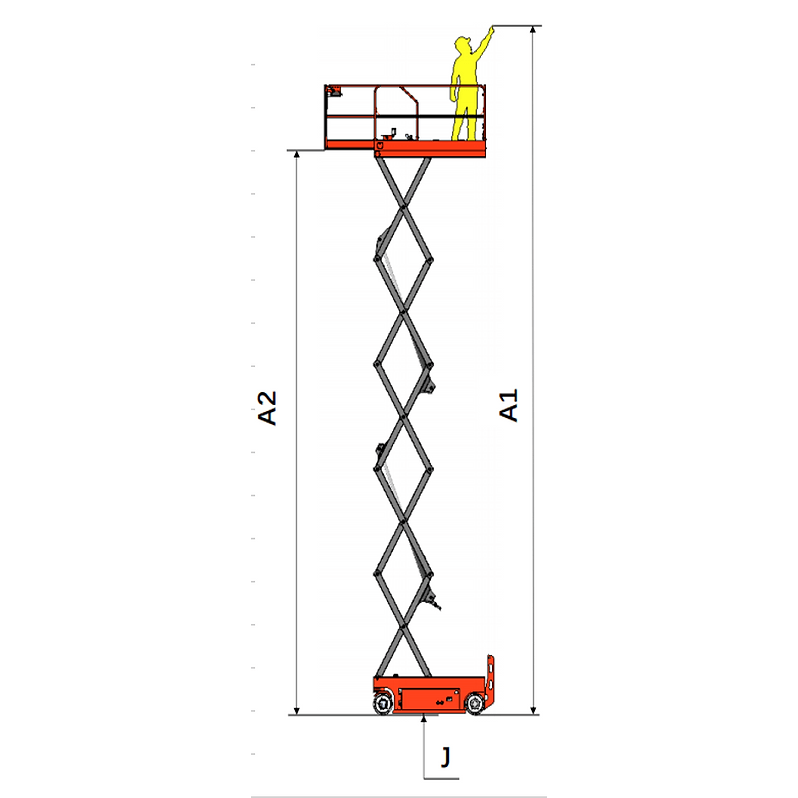

| A1 Max working height | Inch | 32.8′ (394”) |
| A2 Max platform height | Inch | 26.2′ (315”) |
| B Length | Inch | 94.5 |
| C Width | Inch | 45.27 |
| D Overall height (guardrail not folded) | Inch | 91.5″ |
| Overall height (folding guardrail) | Inch | 67″ |
| Platform size (length EX width FX height G) | Inch | 88.58×45.27 |
| G Guardrail height | Inch | 43.3 |
| H Platform extension size | Inch | 39.37 |
| I Ground clearance (closed state) | Inch | 3.74 |
| J Ground clearance (lifting state) | Inch | 0.78 |
| K Wheelbase | Inch | 72.83 |
| product performance | ? | ? |
| Maximum number of workers (indoor/outdoor) | ? | 2 / 1 |
| load rating | LBS | 990 |
| Extended platform load rating | LBS | 265 |
| Driving speed (folding state) | km/h | 0-3.2 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 86.61 |
| Rise/fall time | s | 32/35 |
| Maximum allowable tilting Angle (front/left/right) | 3/1.5 | |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/12.5 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/200 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | ? | Double front wheels |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 15*5 |
| Product power | ? | ? |
| Lift/drive motor | kw | 3.3/0.7×2 |
| Battery voltage/capacity | V/Ah | 25.6V/230AH |
| Charger input voltage | VAC | 25.6V |
| Charger output current | A | 36A |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 22 |
| total weight | lbs | 5512 |
